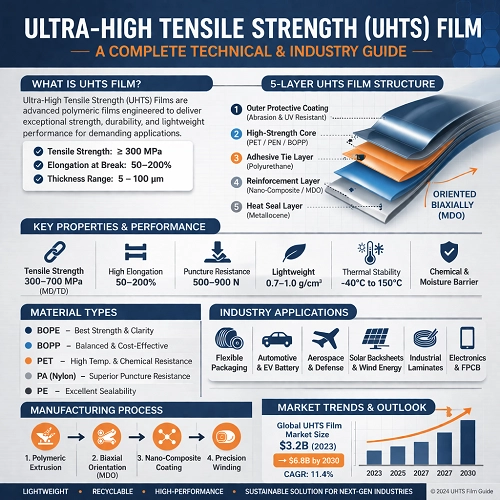

From aerospace structural panels to high-performance industrial packaging, ultra-high tensile strength film is redefining what engineered materials can achieve. This guide examines the science, specifications, and real-world applications of this breakthrough class of polymer film — with insights from leading manufacturer Zhejiang Zhongcheng Packing Material Co., Ltd.
What Is Ultra-High Tensile Strength Film?
Ultra-high tensile strength film is a class of engineered polymer film designed to resist breaking or permanent deformation when subjected to extreme tensile (pulling) forces. Unlike conventional stretch or barrier films, these materials are engineered at the molecular level — often drawing on ultra-high molecular weight polyethylene (UHMWPE), para-aramid polymers, or advanced nanocomposite matrices — to achieve mechanical properties far beyond commodity packaging grades.
Tensile strength, measured in megapascals (MPa) or pounds per square inch (psi), is the primary metric that differentiates these films. Standard low-density polyethylene (LDPE) wrap may reach 10–20 MPa at break; high-performance tensile films can exceed 200–600 MPa, depending on composition and orientation process.
Zhongcheng's full product range encompasses stretch films, pallet wraps, and specialty high-strength formats engineered to serve both general logistics and highly demanding industrial environments.
| Material | Typical Tensile Strength | Density (g/cm³) | Primary Use Case |
|---|---|---|---|
| Standard LDPE Film | 10 – 20 MPa | 0.91 – 0.94 | General packaging wrap |
| Linear Low-Density PE (LLDPE) | 20 – 40 MPa | 0.92 – 0.94 | Stretch pallet wrap |
| Biaxially Oriented PP (BOPP) | 100 – 200 MPa | 0.91 | Food packaging, labels |
| UHMWPE Film | 200 – 400 MPa | 0.93 – 0.96 | Industrial, defense, medical |
| Para-Aramid (Kevlar®-type) | 400 – 700 MPa | 1.44 | Ballistics, aerospace |
| Nanocomposite / Hybrid Film | 300 – 600 MPa | 0.95 – 1.20 | Emerging industrial applications |
Material Composition & Manufacturing Technology
The performance of ultra-high tensile strength film is directly tied to its polymer architecture and the precision of its processing. Three principal routes are used commercially:
1. Gel-Spinning (UHMWPE)
Ultra-high molecular weight polyethylene is dissolved in a solvent to form a gel, extruded through fine spinnerets, and then drawn at elevated temperatures. The result is a highly oriented polymer chain with crystallinity levels of 80–85%, delivering tensile strengths 15 times greater than conventional polyethylene by weight.
2. Biaxial Orientation
Films are stretched simultaneously in both the machine direction (MD) and transverse direction (TD) after extrusion. This aligns polymer chains along two axes, dramatically increasing stiffness, clarity, and tear resistance compared to monoaxially oriented counterparts.
3. Nanocomposite Reinforcement
Incorporating nanoscale fillers such as graphene oxide, carbon nanotubes, or halloysite nanoclay into polymer matrices interrupts crack propagation pathways, yielding films that maintain flexibility while adding substantial tensile and puncture resistance. This is an active area of technical R&D at Zhongcheng.
Technical Note: The degree of molecular orientation — quantified as the draw ratio — is the single most influential variable in tensile strength of polymer films. A draw ratio of 100:1 in UHMWPE processing can yield specific strengths exceeding those of high-grade steel on a weight basis.
| Property | Standard Grade | High-Performance Grade | Test Method Reference |
|---|---|---|---|
| Tensile Strength (MD) | ≥ 80 MPa | ≥ 250 MPa | ASTM D882 |
| Elongation at Break | 50 – 200% | 10 – 60% | ASTM D882 |
| Puncture Resistance | 3 – 8 N/mm | 10 – 25 N/mm | ASTM F1306 |
| Tear Resistance (Elmendorf) | 200 – 600 g | 800 – 2000 g | ASTM D1922 |
| Operating Temperature Range | -30 °C to +80 °C | -60 °C to +130 °C | IEC 60068 |
| UV Resistance (stabilized) | 1,000 h QUV | 3,000+ h QUV | ASTM G154 |
| Moisture Vapor Transmission | 2 – 8 g/m²/day | < 1 g/m²/day | ASTM E96 |
Core Performance Advantages
What sets Zhongcheng's ultra-high tensile strength film apart from conventional packaging films is a combination of properties that work synergistically:
- High Strength-to-Weight Ratio — Provides exceptional mechanical protection while adding minimal mass, critical for aerospace, drone, and logistics applications where payload efficiency matters.
- Chemical Resistance — Resistant to a broad spectrum of solvents, dilute acids, and alkalis, enabling use in chemical processing, pharmaceutical manufacturing, and outdoor construction environments.
- Thermal Stability — Specific formulations maintain dimensional stability and tensile performance across wide temperature swings, supporting cryogenic storage and elevated-temperature industrial processes.
- Tear & Puncture Resistance — Film resists propagation of cuts or punctures, protecting irregular, sharp-edged, or heavy goods during transit and warehousing.
- UV and Weathering Resistance — UV-stabilized grades retain mechanical integrity after prolonged outdoor exposure, extending service life in construction wraps, agricultural covers, and outdoor infrastructure.
- Customizable Thickness & Width — Manufactured to specification, allowing engineers to tailor gauge and roll dimensions precisely to their application requirements.
Cross-Industry Applications
The versatility of ultra-high tensile strength film has driven rapid uptake across sectors where conventional materials previously imposed design or performance compromises. View the full scope of use cases on the Zhongcheng Applications page.
| Industry | Application | Critical Film Property | Typical Grade |
|---|---|---|---|
| Aerospace & Defense | Structural panels, satellite insulation, parachute fabric | Tensile strength, low density, thermal stability | High-Performance |
| Logistics & Warehousing | Heavy pallet unitization, sharp-profile load securing | Puncture & tear resistance, cling force | Standard – High-Performance |
| Construction | Load-bearing membranes, waterproof barrier, formwork | UV resistance, dimensional stability, chemical resistance | Standard |
| Medical Technology | Surgical mesh substrates, drug-delivery patches, flexible sensors | Biocompatibility, tensile modulus, dimensional precision | High-Performance / Custom |
| Electronics | Flexible displays, wearable device substrates, solar encapsulants | Optical clarity, dielectric strength, flexibility at high tensile load | High-Performance / Custom |
| Consumer & Retail | High-durability shopping bags, protective sporting equipment films | Lightweight, printability, abrasion resistance | Standard |
Logistics & Industrial Packaging
In logistics, these films replace multi-layer conventional wraps, reducing total material consumption while delivering superior load stability. Fewer layers mean faster wrapping cycles and lower total cost per pallet — a direct operational benefit for distribution centers handling thousands of units daily.
Construction & Civil Engineering
Exceptional tear resistance and weathering stability make ultra-high tensile strength film a reliable choice for geomembrane liners, building envelope barriers, and reinforcement layers in composite structures. Its resistance to UV degradation ensures long service life without replacement cycles that disrupt project timelines.
Medical & Biotech
Thin, flexible, and mechanically robust, select grades of high tensile film serve as substrates for transdermal drug delivery systems and as reinforcing elements in surgical mesh implants. Tight control of film thickness uniformity is essential in these applications — a manufacturing capability central to Zhongcheng's technological innovation program.
About Zhejiang Zhongcheng Packing Material Co., Ltd.
Founded and headquartered at No. 1, Taishan Road, Huimin Street, Jiashan, Zhejiang, China, Zhejiang Zhongcheng Packing Material Co., Ltd. is a specialist manufacturer of high-performance packaging and industrial films. The company combines a dedicated R&D team with modern production infrastructure to deliver films that meet exacting international quality standards.
Zhongcheng serves a global customer base through an established global sales network, with a track record documented in its development history. The company's commitment to quality is reflected in its portfolio of industry certifications and its pursuit of ongoing technological innovation.
Beyond product performance, Zhongcheng maintains strong commitments to social responsibility and a clearly articulated corporate culture, reflecting its position as a long-term industrial partner rather than a commodity supplier.
Contact Zhongcheng's Technical Sales Team
For technical specifications, custom formulation enquiries, or sample requests, reach out directly:
Tel: +86-573-84186115
tanglc@zjzhongda.com
Tel: +86-573-84186115
wujw@zjzhongda.com
Tel: +86-573-84186115
zhuc@zjzhongda.com
Address: No. 1, Taishan Road, Huimin Street, Jiashan, Zhejiang, China 314100 · Submit an Inquiry Online →
Industry Outlook
The global market for advanced polymer films is experiencing robust growth, driven by demand from light-weighting initiatives in transportation, tightening regulatory standards for packaging waste, and the proliferation of flexible electronics. Ultra-high tensile strength film sits at the convergence of these trends — offering a path to reduced material use without sacrificing protection performance.
As manufacturers like Zhongcheng continue to advance nanocomposite and precision-orientation technologies, the performance ceiling for film materials will continue to rise. For procurement managers, design engineers, and supply chain specialists, evaluating ultra-high tensile strength film is no longer a niche consideration — it is an increasingly essential step in optimizing cost, sustainability, and product integrity simultaneously.
